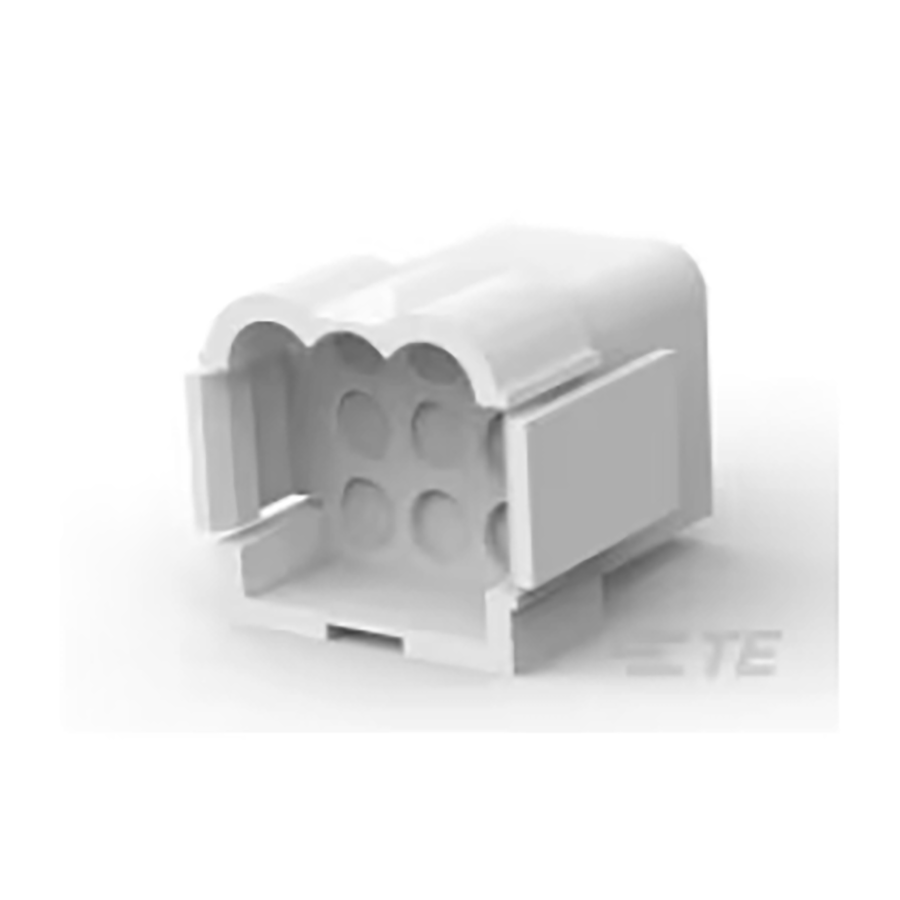

1-480673-0
Manufacturer:
TE Connectivity
Mfr.Part #:
1-480673-0
Datasheet:
Description:
IC and Component Sockets Panel Pin Number of Positions:9 Number of Rows:3 Pitch:6.1 mm Row Spacing:154.94 mm
| Parameter | Value |
|---|---|
| Length | 28.7 mm |
| Width | 23.11 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 9 |
| Height | 23.11 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| Depth | 28.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Pitch | 6.1 mm |
| Current Rating | 28 A |
| Flammability Rating | UL94V-2 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 9 |
| Connector Type | Pin |
| Number of Positions | 9 |
| Number of Rows | 3 |
| Row Spacing | 154.94 mm |
| Insulation Material | Polyamide |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Connector System | Wire-to-Wire |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 10 AWG |
| Housing Color | Natural |
| Contact Gender | Female |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 1075
Distributors
pcbx
pcbxUnit Price$0.74464
Ext.Price$0.74464
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.74464 | $0.74464 |
| 10 | $0.68822 | $6.88220 |
| 25 | $0.63863 | $15.96575 |
| 50 | $0.59332 | $29.66600 |
| 100 | $0.53006 | $53.00600 |
| 300 | $0.49140 | $147.42000 |
| 500 | $0.45556 | $227.78000 |
| 1000 | $0.42233 | $422.33000 |
